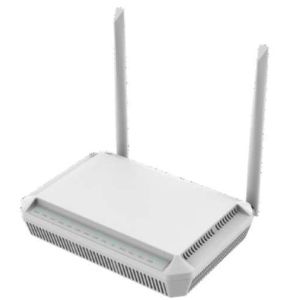

Dual-Band AC1200 GPON ONT with 4 Gigabit Ports

  • 1
  • 2

Brand Name : Dawnergy

Place of Origin : China

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 5-8 work days

Packaging Details : Carton

Optical interface : 1*GPON port, SC/APC

Ethernet : 4*GE RJ45 port

Power Input : DC 12V/1A

Contact Now

Dual-Band AC1200 GPON ONT with 4 Gigabit Ethernet Ports
Product Attributes
Optical interface 1*GPON port, SC/APC
Ethernet 4*GE RJ45 port
Power Input DC 12V/1A
Key Features
  • Dual-band Wi-Fi 5 (AC1200) with 2.4GHz and 5GHz support
  • 1 GPON port (SC/APC connector) for fiber optic connection
  • 4 Gigabit Ethernet ports for wired connections
  • 1 FXS RJ11 port for telephone service
  • Advanced wireless features including WPS and EasyMesh
  • Comprehensive security features including SPI firewall
Dual-Band AC1200 GPON ONT with 4 Gigabit Ports
Technical Specifications
Optical Interface 1*GPON port, SC/APC
Ethernet 4*GE RJ45 port
Telephone 1*FXS RJ11 ports
USB 1*USB2.0
Power Input DC 12V/1A
Main Chipset EN7528
WiFi 2.4G MT7592
WiFi 5G MT7613
Memory 256MB SPI NAND Flash, 512MB DDR3
GPON Specifications
Standards ITU-T G.984, G.988
Optical Module Class B+, BOB
Bandwidth 2.488Gbps Downstream, 1.244Gbps Upstream
Wavelength 1310nm Transmit, 1490nm Receive
Max Distance 20 Km
TX Output 0.5~5dBm
RX Input -8 to -28dBm
Wireless Specifications
Standards IEEE 802.11 a/b/g/n/ac, WMM, WPS, EasyMesh
Frequency 2.4GHz & 5GHz
Data Rate 2.4GHz: 300Mbps (40MHz)
5GHz: 867Mbps (80MHz)
Security WEP, WPA/WPA2-PSK
Antenna 2*5dBi External antennas
Physical Specifications
Temperature Operating: 0~45℃ (32~113℉)
Storage: -20~65℃ (-4~149℉)
Humidity 5%~95% (non-condensing)
Dimensions 195*134*45mm (W*D*H)
Weight 320g (device only)
Color White
Package Contents
  • 1* GPON ONT
  • 1* Power Adapter (12VDC)
  • 1* Ethernet Cable (CAT5e)
  • 1* Quick Installation Guide
Certifications

CE, WiFi Alliance, BBF.247, NOM
